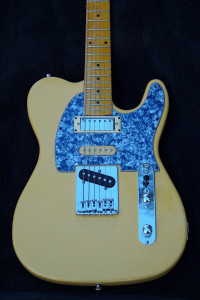

Haywire Custom Guitars Brent Mason Style Telecaster wiring.
Here’s a breakdown of the potential causes:
1. Cable and Connections:
Bad Guitar Cable: A faulty or damaged cable is one of the most common culprits.
Loose Output Jack: The output jack where you plug in the cable might be loose, preventing a solid connection and breaking the ground.
Poor Solder Joints: Weak or poorly connected solder joints at the output jack, switch, pickups, tone/volume pots, or capacitor can interrupt the signal flow.
Loose Wires: Any loose wire within the guitar’s circuitry can lead to an intermittent or weak signal.
2. Internal Components:
Bad Switch: A faulty pickup selector switch can cause a weak or intermittent signal, potentially affecting only certain pickup positions.
Grounding Issues: A ground wire loop or a ground wire touching a “hot” wire can disrupt the signal.
Haywire Custom Guitars set of single coil guitar pickups
3. External Factors:
Bad Amp or Effects: Although not directly related to the guitar itself, a faulty amp or effects pedal could be the source of the problem. Testing with a different amp or bypassing pedals can help isolate the issue.
Guitar Pickups: While less common, a weak or failing pickup can also cause signal issues.
Troubleshooting Tips:
Start with the basics: Check the guitar cable, try a different one, and ensure it’s securely plugged into both the guitar and the amp.
Inspect the output jack: Check if the jack is loose or if any solder connections look broken.
Test the switch: Try switching between different pickup positions to see if the problem is isolated to one position.
Consider internal components: If the issue persists, it may be necessary to inspect the internal wiring and solder joints, potentially requiring some soldering skills or professional help.
Note: Haywire Custom Guitars also emphasizes that a weak or intermittent signal can mimic the symptoms of a faulty pickup, switch, or pot, so it’s important to rule out other causes before replacing components.

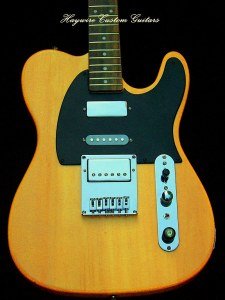

Haywire Custom Guitars modified Brent Mason Style Telecaster wiring.
